W20
HANBS

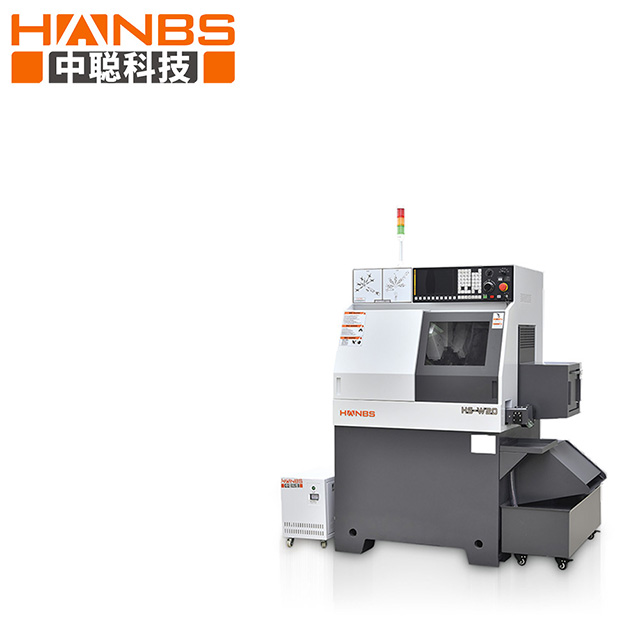

Hanbs Five Tool Simultaneous Precision Swiss Type CNC Lathe with High Processing Speed
Product Description
High Processing Efficiency:
Using five tools simultaneously can significantly reduce processing time. Traditional lathes require changing tools one by one, while a five-tool design can perform multiple operations at once, greatly enhancing processing efficiency.
Improved Processing Precision:
Simultaneous multi-tool processing can reduce errors caused by tool changes, improving the precision of the workpiece. This is especially beneficial in the processing of complex parts, reducing cumulative errors and enhancing overall quality.
Strong Processing Flexibility:
With five tools working simultaneously, more processing steps can be completed in a single clamping, reducing the need to transfer workpieces between different machines. This not only improves production efficiency but also reduces errors due to repeated clamping.
Reduced Production Costs:
Due to reduced processing time and increased production efficiency, overall production costs are lowered. Additionally, the design of simultaneous multi-tool operation can reduce the need for multiple machines, saving on equipment investment.
control system | HANBS self-innovate (yn 1.0 versions) |
Servo axis number | Standard 12 axis |
Programming method | 5-channels G code programming, each axis can be programmed separately |
The number of knives | Group 5 |
Maximum machining diameter | Φ15mm Φ20mm |
Maximum machining length(50mm in guide mode) | The walking knife mode is 50mm |
Maximum axial bore diameter (When the back shaft is 12mm and the handle is 10mm) | Φ6mm |
Drilling arm handle diameter | ∅5（Three)∅6（Two） |
Attack capability (spindle reversal mode) | M6 Copper |
Dental tapping ability (doraxial delivery) | M5 Copper |
Car thread function | Yes |
Multi-knife synchronous processing function | Yes |
Radial max bore diameter | Φ7mm |
Radial max bore tapping size | M5 |
Maximum clamping diameter of the back side spindle | ∅12mm |
Maximum bore diameter of the back-side spindle | ∅6mm |
Maximum tapping diameter of the back-side spindle | M6 |
Spindle power | 2KW(With the function of score) |
Backside platform axle power | 1.0KW |
| Maximum spindle speed(For short use only)6000rpm
| 6000rpm |
Back maximum speed (for short use only) | 6000rpm |
Maximum removal length of piece | 50mm |
Side power tool unit (optional) | 2 |
End face power tool unit (optional) | 1 |
Row knife (□ 8 * 120 * 3)) | 3 |
Standard maximum number of tool installed (5 knives + 5 drill / boring) | 10 |
High maximum number of tool installed (5 + 5 drilling / boring + 1 back strong drill) | 11 |
Knife size | 8*8 |
Z1.2.3.4.5 axial stroke | 50mm |
X1.2.3.4.5 axial stroke | 30mm |
Backshaft itinerary | 150mm |
X1.2.3.4.5 axial power | 400W |
Z1.2.3.4.5 axial power | 400W |
Z1, Z2, Z3, Z4, Z5, and Z2 axis fast-forward speed | 30m/min |
X1, X2, X3, X4, X5 axis fast forward speed | 30m/min |
Center height of spindle | 1010mm |
High version input power | 7.6KW |
weight | 1800Kg |
Fuel tank storage | 50L |
size | 1550*1060*1650mm |
FAQ
Q: What types of parts are suitable for a five-tool simultaneous CNC lathe?
A: This equipment is suitable for processing parts with complex shapes and high precision requirements, covering multiple industries such as automotive components, aerospace, and medical devices.
Q: How long does it take to train operators?
A: Basic operation training usually takes 1-2 weeks, and we also offer ongoing technical support.
Q: How reliable is the five-tool simultaneous CNC lathe?
A: Our equipment is rigorously tested and highly reliable. It has a low failure rate and comes with comprehensive after-sales service support.
Q: What after-sales services do you offer?
A: We provide equipment installation, operator training, regular maintenance, and emergency repair services. Our technical support team is always ready to assist you.
Q: What are the technical specifications of this CNC lathe?
A: Technical specifications include machining precision, maximum workpiece size, etc. Please refer to the product manual or contact our technical support team for details.
Q: Can the equipment be upgraded or expanded to meet future needs?
A: Yes, the equipment is highly flexible and scalable, and can be upgraded and configured according to your needs.
Q: How does the five-tool design optimize the existing production process?
A: The five-tool design reduces processing steps, increases machining precision and efficiency, thereby optimizing the production process and lowering production costs.
Q: Does simultaneous multi-tool operation increase tool wear?
A: Simultaneous multi-tool operation distributes the load among the tools, which can actually reduce wear on individual tools and extend their lifespan.
Q: Can the five-tool simultaneous CNC lathe process specific materials?
A: Our equipment can process a variety of materials, including metals, plastics, and composites. For specific processing capabilities, please refer to the product manual or consult technical support.
If you have any other questions, please feel free to contact our sales or technical support team.
