HS-P26
HANBS

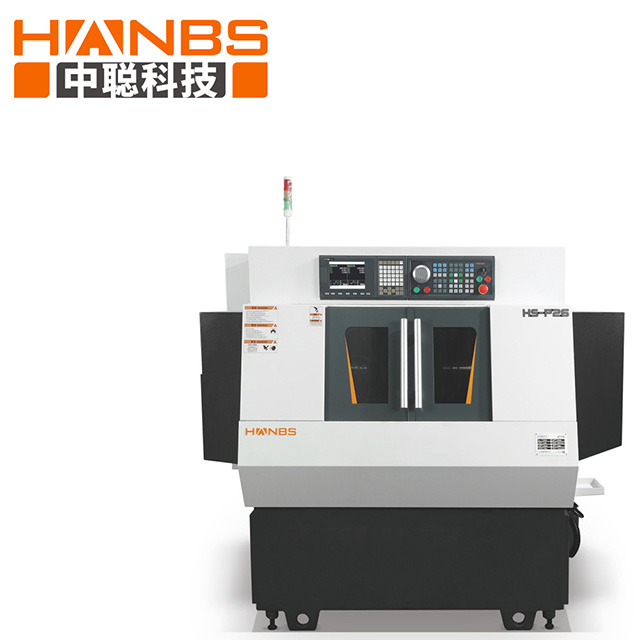

P26- Swiss Type CNC Lathe with Double Spindle and Double Row of High Processing Speed and Performance
Product Description
Simultaneous Machining: The twin-spindle design allows for two machining operations to occur simultaneously, with one spindle performing the main machining and the other handling auxiliary tasks. This significantly boosts machining efficiency.
Reduced Tool Change Time: The twin-turret setup can hold more tools, reducing the time lost to tool changes and increasing continuous machining efficiency.
Improved Surface Finish: The ability to perform multiple operations in one setup with minimal handling improves the surface finish and dimensional accuracy of the workpieces.
Consistent Quality: The stability and precision of the twin-turret Swiss-type CNC lathes ensure consistent quality across large production runs.
Reduced Setup Time: The ability to load multiple tools and perform various operations in a single setup saves considerable setup time.
Efficient Production Cycles: The machine's capability to perform simultaneous operations shortens the production cycle times, leading to faster overall production.
Product Information
| Processing parameters | Maximum processing diameter | φ26mm |
| Maximum machining length 2.5D | 50mm | |
| Maximum axial drilling diameter | M10mm | |
| Maximum axial tapping size | M8 | |
| Max. spindle speed (short time) | 10000rpm | |
| Max. back spindle speed (short time) | 12000rpm | |
| Max. workpiece removal length | 40mm | |
| Maximum stroke | X1 axis | 375mm |
| Z1 axis | 180mm | |
| X2 axis | 375mm | |
| Z2 axis | 180mm | |
| Cutting tool | Size of cutter plate | 390mm |
| Maximum number of tools | 8 | |
| Tool (turning tool) | φ16X16 | |
| Sleeve | φ25 | |
| Height from tool plate holder to spindle centre | 45mm | |
| Collet | Spindle collet | HB26 |
| Back spindle chuck | HB26 | |
| Feed rate | X1/X2 axis feed rate | 15m/min |
| Z1/Z2 axis feed speed | 15m/min | |
| Motor | Spindle drive power | 2.5/3.7KW |
| Back-axis drive power | 1.5/2.5KW | |
| X1 X2 Z1 Z2 power | 1.1KW | |
| Cutting oil | 0.4KW | |
| Other | Spindle centre height | 1010mm |
| Air pressure flow | 0.7mpa 0.5m3/min | |
| Main breaker capacity | 40A | |
| Input power | 5.4KW | |
| Weight | 2700Kg | |

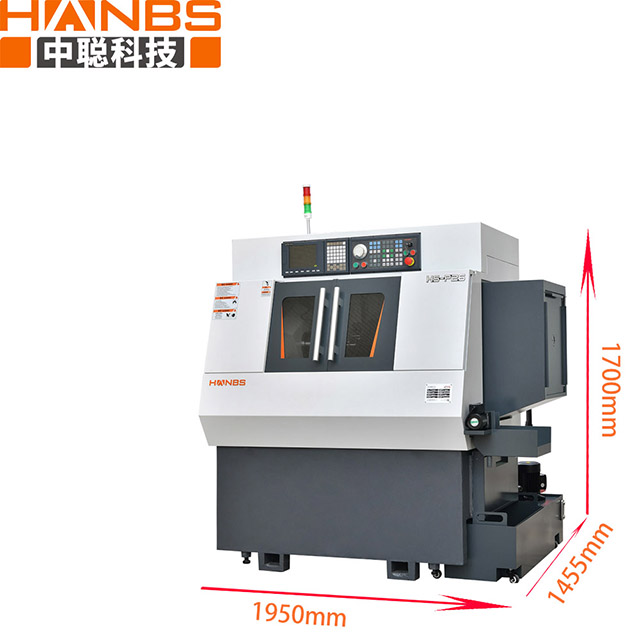

| Dimension | 1950X1455X1700mm |
Product Uses
The following are four specific application scenarios of NCN Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
FAQ
Q: How much does a dual spindle dual gang Swiss-type CNC lathe cost?
A: The price varies depending on the model and specific configuration. Please contact our sales team for detailed pricing.
Q: What types of parts are suitable for a dual spindle dual gang Swiss-type CNC lathe?
A: This equipment is suitable for processing complex, high-precision parts, covering multiple industries such as automotive components, aerospace, and medical devices.
Q: How long does it take to train operators?
A: Basic operation training usually takes 1-2 weeks. We also offer ongoing technical support to ensure smooth operation.
Q: How reliable is the dual spindle dual gang Swiss-type CNC lathe?
A: Our equipment is rigorously tested for high reliability and has a low failure rate. It comes with comprehensive after-sales service support.
Q: What after-sales services do you offer?
A: We provide equipment installation, operator training, regular maintenance, and emergency repair services. Our technical support team is always ready to assist.
Q: What are the technical specifications of this CNC lathe?
A: Technical specifications include machining precision, maximum workpiece size, and more. Please refer to the product manual or contact our technical support team for details.
Q: Can the equipment be upgraded or expanded to meet future needs?
A: Yes, the equipment is highly flexible and scalable, and can be upgraded and configured according to future requirements.
Q: How does the dual spindle dual gang design optimize the existing production process?
A: The design allows for simultaneous machining and multitasking, which reduces processing steps, increases machining precision, and improves overall production efficiency.
Q: Does simultaneous multi-tool operation increase tool wear?
A: Simultaneous multi-tool operation distributes the load among the tools, which can reduce wear on individual tools and extend their lifespan.
Q: What is the energy consumption of this CNC lathe?
A: Energy consumption depends on the specific model and operational parameters. Please contact our technical support team for detailed information on energy efficiency.
If you have any other questions, please feel free to contact our sales or technical support team.
