HS-P15
HANBS

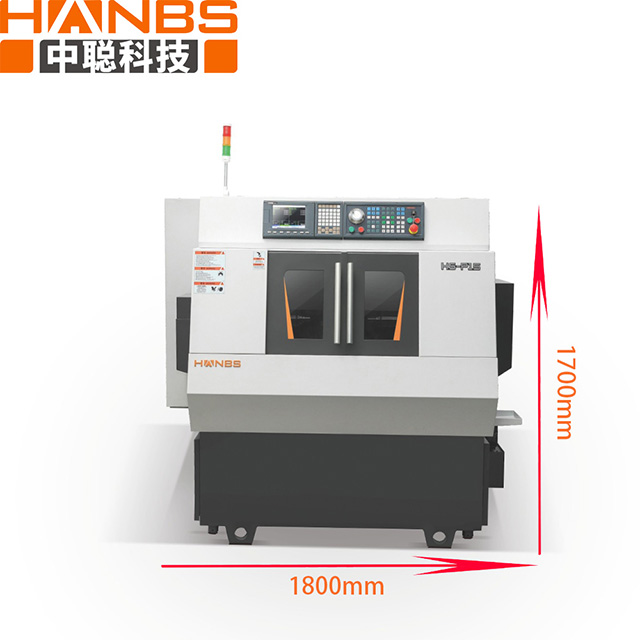

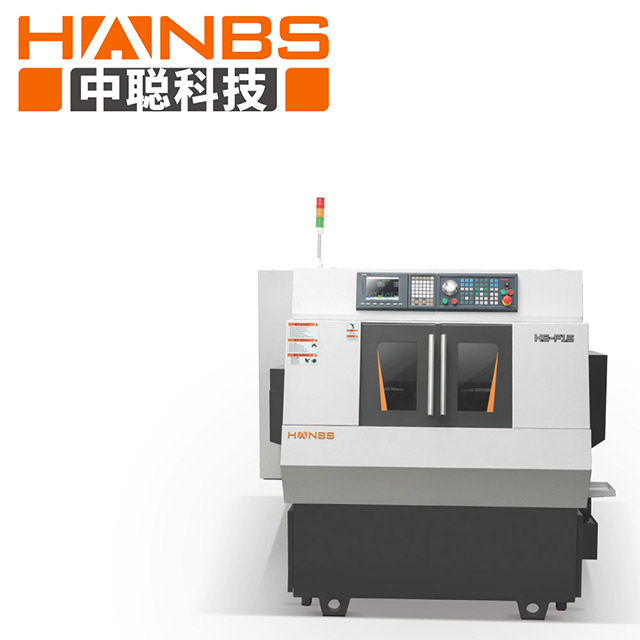

Automatic CNC Lathe Machine of Double Spindle And Double Row with Fanuc System
Product Advantage
Lathe machine is mainly used for component processing, and swing machine relies on the axial movement of the spindle clamping material for turning and milling to obtain the components you need.
CNC Lathe can customize the configuration of our machine according to your needs, making it more convenient for you to use.
Our Swiss Lathe machine has been CE certified, and the geometric accuracy of the machine tool is in accordance with the factory standards and the Chinese General Rules for Metal Cutting Machine Tools GB/T1742.1-1998 (International ISO230-1-96).
CNC Lathe provides machine tool user manual, programming manual, machine tool layout plan, programming manual for CNC system, and provides machine tool factory certificate and geometric accuracy testing report.
CNC Automatic Lathe Machine can be used in eight scenarios: New energy vehicles, medical treatment, Communication accessories, Household appliances, Electronic appliances, Precision component processing, hydraulic pressure, Pneumatics.
Technical Parameters
| Machining parameters | Maximum machining diameter | φ15mlm(spindle)12.7mm(back spindle) | |
| Maximum machining length2.5D | 35mm | ||
| Maximum drilling diameter in axis | φ7mm | ||
| Maximum axial tapping size | M6 | ||
| Max. spindle speed (short time) | 10000rpm | ||
| Max. back spindle speed (short time) | 12000rpm | ||
| Max. workpiece removal length | 35mm | ||
| Maximum stroke | X1 axis | 285 mm | |
| Z1 axis | 170 mm | ||
| X2 axis | 285 mm | ||
| Z2 axis | 170 mm | ||
| Cutting tool | Plate size | 310mm | |
| Maximum number of tools | 8 | ||
| Tool (Turning tool) | 12X12 | ||
| Sleeve | φ20 | ||
| Height from tool plate holder to spindle centre | 45mm | ||
| Collet | Spindle holders | Outer teeth18.1x21teeth(M18X1.2)76length | |
| Back spindle chuck | HA12 | ||
| Feed rate | X1/X2 axis feed rate | 30m/min | |
| Z1/Z2 axis feeding speed | 15m/min | ||
| Motor | Spindle drive power | 2.5/3.7KW | |
| X1 X2 Z1 Z2 power | 0.75KW | ||
| Cutting oil | 0.4KW | ||
| Other | Spindle centre height | 1010mm | |
| Air pressure flow | 0.7mpa 0.5m³/min | ||
| Main breaker capacity | 40A | ||
| Input power | 5.0KW | ||
| Weight | 2400Kg | ||
| Overall Dimension | 1850X1450X1600mm | ||
Product Uses
The following are four specific application scenarios of CNC Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
FAQ
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.
Q2. How can I place order?
A: You can contact us by email about your order details, or place order on line. Thank you!
Q3. Can you give the favourable price?
A. We have different series machine,but we can recomand you machine according to your products and the quote favourable price for you.
Q4.Can you provide some certificate?
A. We can provide certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is46 mm.Mini processing daimeter is 3mm.And you can see the above picture about the samples.
Q6.How will the machine be transported?
A.We transport machine by sea.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.
