HS-320
HANBS

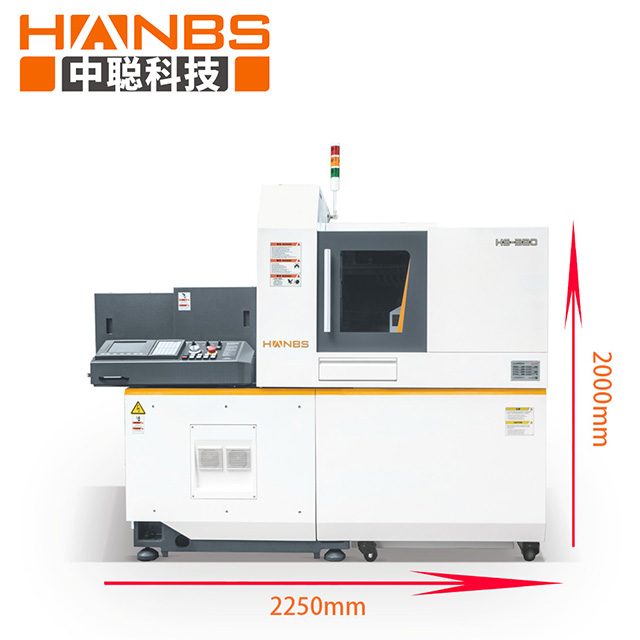

Hs-320 CNC Lathe Mahine Swiss Type Lathe with High Processing Efficiency
High Precision Machining:
The design of Swiss-type lathes makes them ideal for machining long and slender workpieces, maintaining high precision along the entire length of the workpiece.
The workpiece is supported by a guide bushing, reducing vibration and deformation, which enhances machining accuracy and surface quality.
Efficient Production:
While a single-spindle design may not be as efficient as a twin-spindle, it still enables continuous production, especially suitable for medium and small batch production.
An automatic bar feeder can enable long periods of unattended operation, improving production efficiency.
Multi-process Integration:
Capable of performing multiple operations (e.g., turning, milling, drilling, tapping) in a single setup, reducing time and errors associated with transferring workpieces between different machines.
Equipped with a multifunctional turret that allows for flexible switching between different machining operations.
Product Information
| Project | ||
| Processing references | Maximum machining diameter | Φ20mm |
| Maximum machining length | 190mm | |
| Maximum axial bore diameter | Φ10mm | |
| Maximum axial work wire size | M8 | |
| Maximum spindle speed | 10000rpm | |
| Radial maximum bore diameter | Φ7mm | |
| Radial maximum bore tapping size | M6 | |
| Radial power head maximum rotation speed | ER11:10000/ER16:8000 | |
| Rated speed of radial power head | ER11:8000/ER16:6000 | |
| Maximum workpiece removal length | 100mm | |
Tool dimension | Number of knives installed | 6 |
| Tool (turning tool) | 12X12 | |
| sleeve | Φ25.0 X 4 | |
| Clip head guide sleeve | Spindle spring collet | TSUGAMI B0205CCR |
| Power head collet | ER11,ER16 | |
| Guide bushing | TSUGAMI BS-20#-B | |
| Feeding speed | Z1/Y-axis feed velocity | 30m/min |
| X1 | 20m/min | |
| Electric motor | Spindle drive power | 2.5/3.7KW |
| Power head drive power | 1KW | |
| For cutting fluid | 0.4KW | |
| Cooling of spindle | 0.075KW | |
| Lubricating oil | 0.01KW | |
| Others | Spindle center height | 1060mm |
| Barometric flow | 0.7mpa 0.5m³/min | |
| Main circuit breaker capacity | 40A | |
| Input power | 9.3KW | |
| Weight | 2.6T | |
| Overall dimensions | 2250X1200X1850mm |
Q&A
Q1: What is the machining accuracy of this single-spindle Swiss-type CNC lathe?
A: Our single-spindle CNC lathe offers high precision and repeatable positioning accuracy, suitable for applications requiring precise dimensional control and surface quality. The specific accuracy depends on the machining materials and process parameters, typically meeting stringent engineering requirements.
Q2: Which types of materials can this machine process?
A: Our single-spindle Swiss-type CNC lathe can handle various materials, including metals (such as steel, aluminum, copper), plastics, and some composite materials. This versatility makes it suitable for a wide range of industrial production needs.
Q3: How efficient is this machine in production?
A: Our single-spindle Swiss-type CNC lathe offers high production efficiency, capable of completing multiple operations in a single setup, significantly reducing machining cycles. Features such as automatic bar feeders and high-speed tool change systems further enhance production efficiency.
Q4: Is operation and programming complex for this machine?
A: We have designed our single-spindle CNC lathe with an intuitive and user-friendly interface, equipped with advanced programming capabilities to simplify operation and programming tasks. We also provide training and technical support to ensure quick adaptation and proficiency.
Q5: What are the maintenance and operating costs of this machine?
A: The single-spindle Swiss-type CNC lathe has lower maintenance and operating costs due to its simple yet robust design, reducing downtime and repair expenses. Regular preventive maintenance ensures long-term reliable operation of the equipment.
Q6: Do you provide after-sales service and technical support?
A: Yes, we offer comprehensive after-sales service and technical support, including remote diagnostics, scheduled maintenance, and spare parts supply. Our commitment is to ensure optimal production efficiency and cost-effectiveness for our customers.
Q7: How is the energy consumption of this machine?
A: Our single-spindle Swiss-type CNC lathe incorporates advanced energy-efficient technologies, such as energy-saving motors and control systems, effectively reducing energy consumption and meeting modern environmental standards.
Q8: Is installation and training included?
A: We provide comprehensive installation services and include operation and programming training. Our professional team ensures proper installation and helps customers quickly acquire operational skills.
